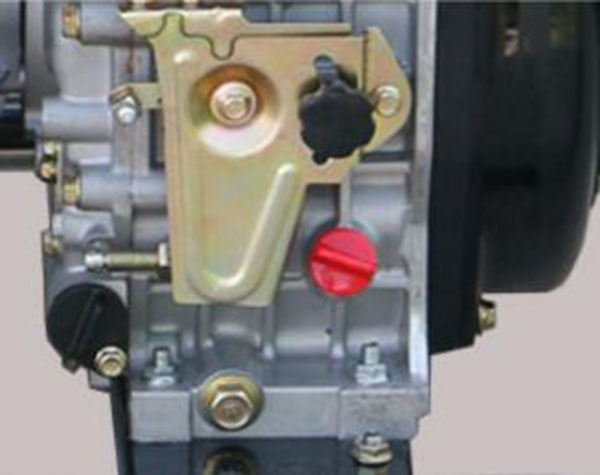

OHV engine is used to ensure effective combustion.
Aluminum alloy self-priming pump body, cast iron impeller + turbine cover, effectively improve the durability of the pump.
Single bar air-cooled engine, powerful, sufficient power, fast water absorption.

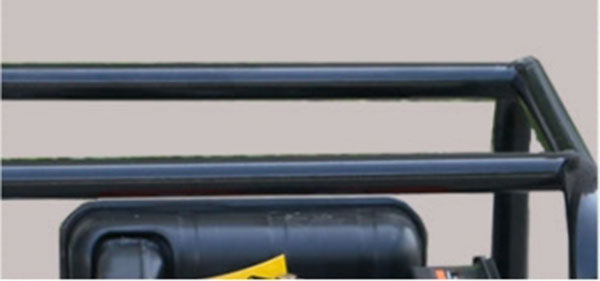

The frame is made of high quality thick steel pipe, with guaranteed design of surround quality, durable and resistant to falling, firm and durable, easy to move.
Strong suction, large flow. The pump body has good sealing, strong pressure and high head
Can be manufactured according to user demand.
|
Model |
178 |
|
Type |
Four-stroke air-cooling |
|
Gas displacement |
296（cm³） |
|
Start-up system |
Manual/electric start |
|
Oil capacity |
1.1(L) |
|
Capacity of tank |
3.5（L） |
|
Fuel oil |
Diesel |
|
Inlet/outlet caliber |
80（3Inch） |
|
Pumping head |
28M |
|
Suction lift |
8M |
|
Max flow |
50m³/h |
|
Revolving speed |
3600rpm |
|
Package size |
585*460*585（mm） |
|
GW/NW |
45/43(kg) |
Outdoor construction, emergency drainage, camping, flood and waterlogging
The warranty period is one year
